Modern architecture is changing fast. Architects now look for materials that are beautiful and strong. Perforated aluminium panels for facade cladding have become a top choice. These panels offer a unique look while protecting the building. Whether it is a shopping mall or a car park, these panels provide the perfect balance of light, air, and design.

---

Technical Specifications: The Core of the Panel

To ensure long-lasting performance, we use high-quality alloys. The material must withstand wind, rain, and sunlight.

Material and Alloy Table

Feature	Specification	Why it matters
Common Alloy	Alloy 3003 / 5052	High strength and excellent rust resistance.
Temper (State)	H14 / H24	Provides the right balance of hardness and flexibility.
Thickness	$$1.5mm$$ to $$4.0mm$$	Thicker panels are used for large exterior walls.
Surface Finish	PVDF, Powder Coating, Anodized	PVDF is best for outdoor use (resists fading).
Open Area	$$10%$$ to $$70%$$	Controls how much light and air passes through.

---

Common Types of Perforation Patterns

The “look” of the building depends on the hole pattern. As a manufacturer of perforated aluminium panels for facade cladding, we offer several standard and custom designs.

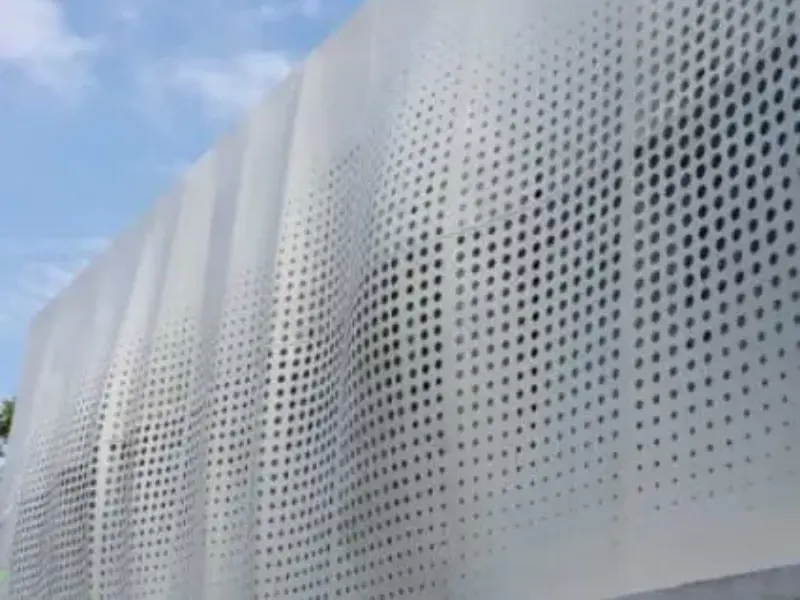

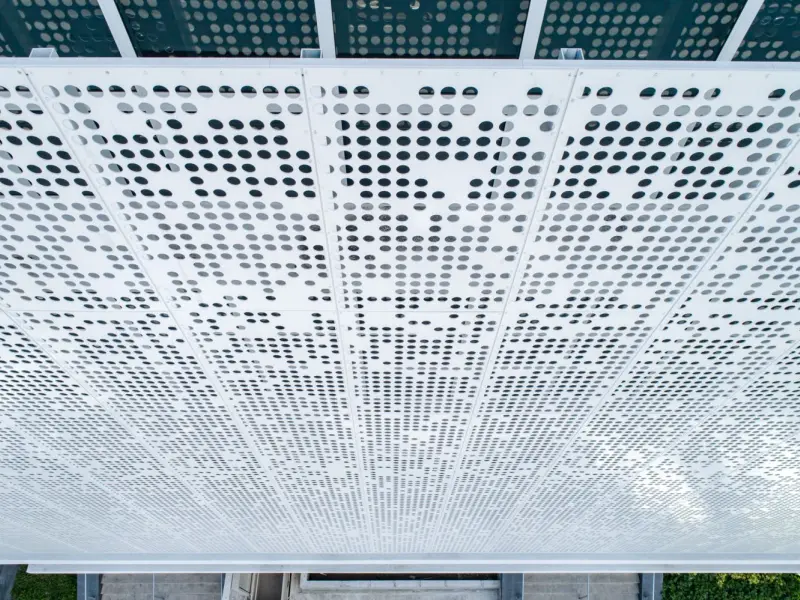

1. Round Hole Perforation

This is the most popular style. It is simple and clean. It provides great structural stability. You can choose “staggered” or “straight” rows.

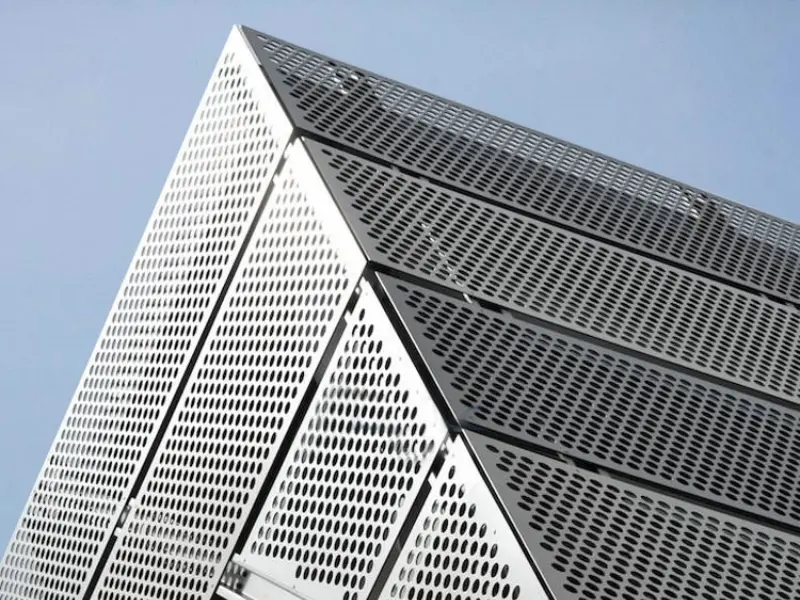

2. Square and Rectangular Holes

These give a building a very modern, industrial look. Square holes offer a high open area, which is great for ventilation.

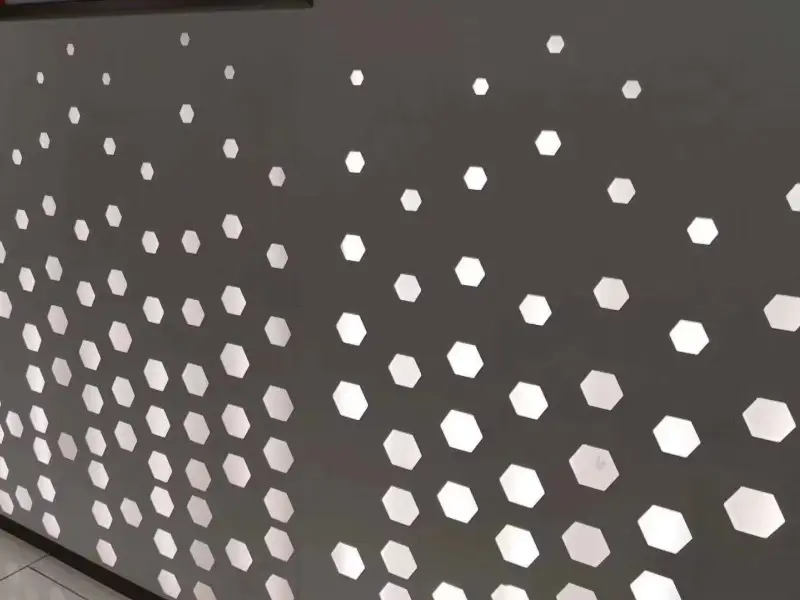

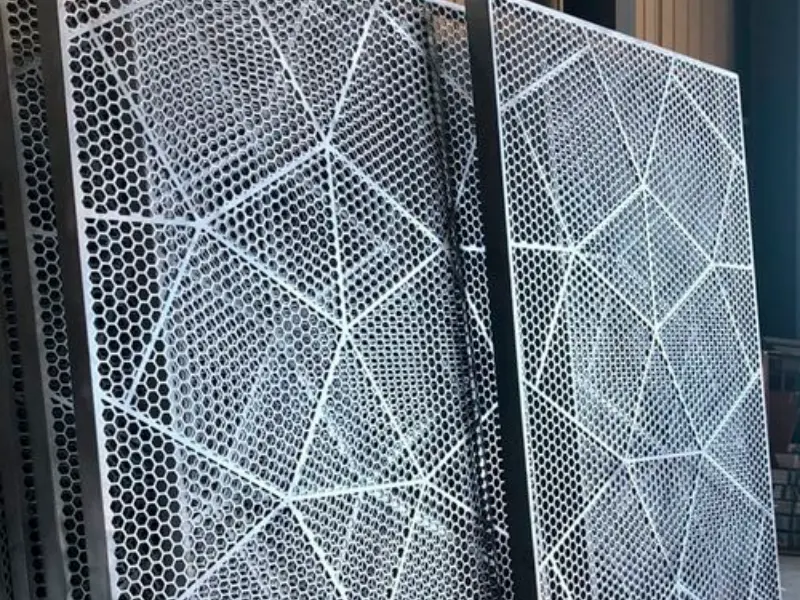

3. Hexagonal (Honeycomb) Patterns

Hexagonal holes look very high-tech. They are often used in sports stadiums or car showrooms to create a sense of speed and movement.

4. Artistic and Custom CNC Patterns

Using CNC technology, we can create patterns that look like leaves, clouds, or even company logos. This makes the facade a work of art.

---

Surface Treatment Options

Because these panels are outside, the finish is very important.

Coating Type	Durability	Color Options	Best For
PVDF Coating	$$20+$$ Years	Huge variety	High-rise building exteriors.
Powder Coating	$$10 – 15$$ Years	Unlimited	Low-rise buildings and interiors.
Anodized	Excellent	Metallic (Silver, Bronze)	Modern, raw metal aesthetic.

---

Major Applications of Perforated Aluminium Panels

The real power of perforated aluminium panels for facade cladding is seen in their diverse applications. They are not just for decoration; they serve a purpose.

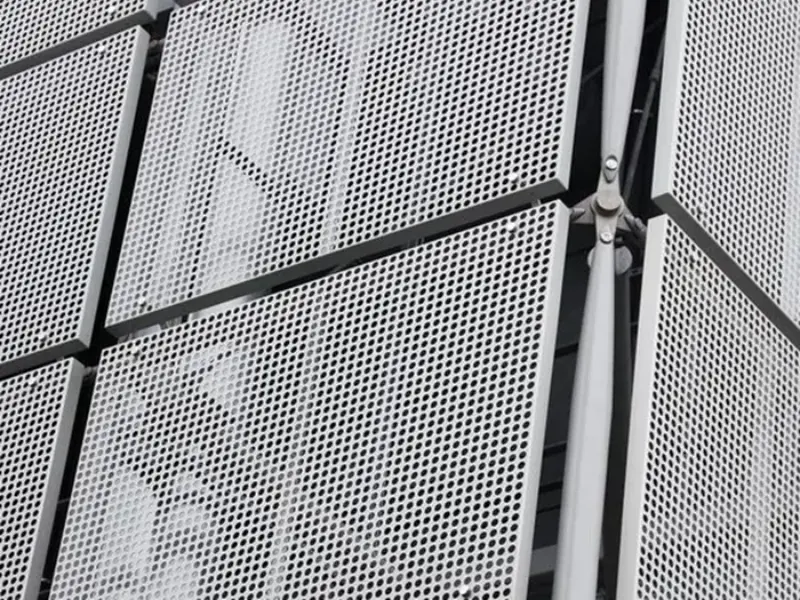

1. Commercial Building Facades

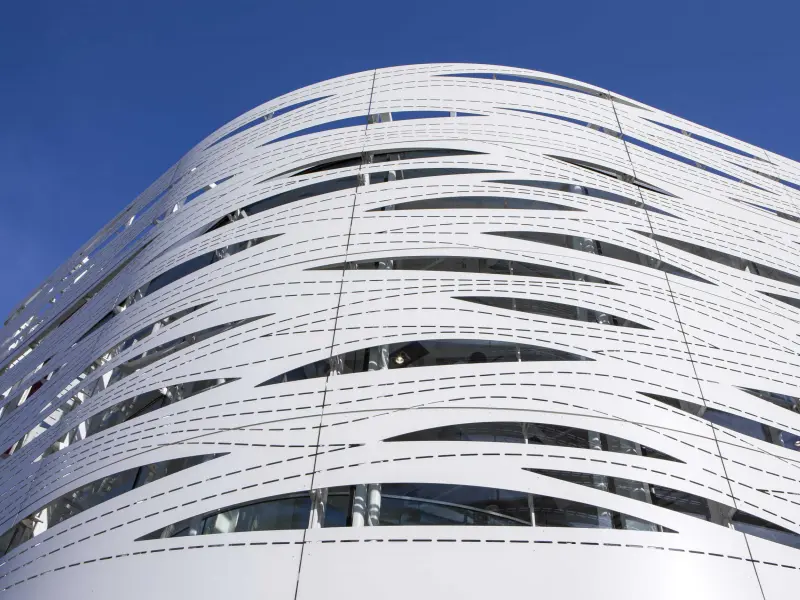

Office towers and headquarters use these panels to create a “second skin.”

• Solar Shading: The panels block direct sunlight, which keeps the building cool.
• Energy Efficiency: Reducing heat means lower air conditioning costs.
• Brand Identity: Custom patterns can reflect the company’s style.

2. Multi-Story Car Parks

Car parks need a lot of fresh air to remove exhaust fumes.

• Natural Ventilation: The holes allow air to flow freely without the need for expensive fans.
• Safety: The panels act as a barrier to keep people safe inside.
• Visual Cover: They hide the ugly concrete structure and parked cars from the street.

3. Shopping Malls and Retail Centers

For retail, the building must attract customers.

• Backlighting: At night, you can place LED lights behind the perforated panels. This makes the whole building glow.
• Dynamic Designs: Using different hole sizes (gradient perforation) can create 3D visual effects.

4. Public Transport Stations

Train stations and airports use aluminium because it is fireproof and easy to clean.

• Acoustic Control: Perforated panels help absorb noise from trains and crowds.
• Weather Protection: They protect passengers from rain while letting in natural light.

5. Balcony Privacy Screens

In residential apartments, these panels provide privacy without blocking the view completely.

• Airflow: Residents can enjoy a breeze even with the screens closed.
• Security: Aluminium is strong and difficult to cut or break.

---

Why Architects Choose Perforated Aluminium

There are many materials available for cladding, such as stone or glass. However, aluminium offers unique benefits.

• Lightweight: It is much lighter than steel or stone. This makes it easier and cheaper to install.
• Corrosion Resistance: Aluminium does not rust. This is vital for buildings near the ocean.
• Recyclable: At the end of the building’s life, the panels can be recycled $$100%$$.
• Easy Maintenance: Rainwater usually washes away the dust. A simple cleaning every few years is enough.

---

Installation and Sizing Guide

We provide panels in various sizes to fit your steel structure.

Item	Standard Size	Custom Range
Width	$$1220mm$$	Up to $$1500mm$$
Length	$$2440mm$$	Up to $$6000mm$$
Hole Diameter	$$5mm$$ to $$50mm$$	Custom shapes available

Fixing Methods

1. Tray System: The panels are folded at the edges to form a “tray” and then bolted to the frame.
2. Flat Plate: The panels are fixed directly to the structure using visible or hidden fasteners.
3. Hook-on System: Ideal for large facades where panels need to be removed for maintenance.

---

Frequently Asked Questions

Do perforated panels whistle in the wind?

If designed correctly, no. We calculate the hole size and spacing to ensure that wind passes through quietly.

Can you make the holes into a picture?

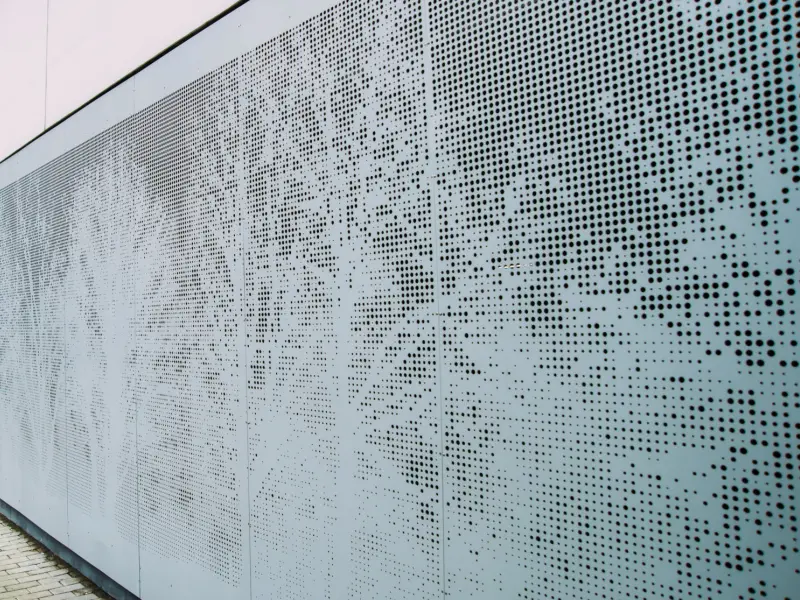

Yes. This is called “Image Perforation.” We use different hole sizes to create shadows and highlights that form an image from a distance.

Is PVDF better than Powder Coating for facades?

For exterior perforated aluminium panels for facade cladding, PVDF is usually better. It has higher resistance to UV rays and chemicals, so the color lasts longer in the sun.

---

Transform Your Building

Perforated aluminium panels for facade cladding are more than just a trend. They are a functional solution for modern energy and design challenges. By choosing the right alloy, like Alloy 3003, and a durable PVDF finish, you can create a building that looks amazing for decades.

Whether you need a simple round-hole design for a car park or a complex artistic facade for a luxury hotel, these panels deliver. Contact us today to discuss your specific dimensions and design requirements.
