Punched aluminum sheets, often called perforated aluminum, are versatile metal products used in hundreds of industries. From modern architecture to high-tech filtration, these sheets offer a perfect balance of strength and lightweight performance.
Our factory specializes in high-speed precision punching. We provide custom solutions for perforated aluminum strips, heavy-duty punched aluminum angles, and specialized perforated aluminum foil. Whether you are looking for a perforated aluminum sheet 4×8 or custom-cut sizes, we have the manufacturing power to meet your needs.
Different Types of Punched Aluminum Products
We offer a wide variety of shapes and sizes to fit different hardware requirements.
1. Perforated Aluminum Sheet 4×8
The perforated aluminum sheet 4×8 (4 feet by 8 feet) is the industry standard size. It is used mostly in construction for wall panels, ceiling tiles, and fencing.
2. Perforated Aluminum Strip
A perforated aluminum strip is a narrower version of the sheet. These are often used as ventilation grilles in kitchens, cabinets, or as edge protectors in building projects.
3. Perforated Aluminum Foil
For specialized industries, we produce perforated aluminum foil. This is a very thin gauge of aluminum used for heat shielding, sound dampening, or high-end filtration systems.
4. Punched Aluminum Angle and Flat Bar
Hardware needs often go beyond flat sheets.
- Punched aluminum angle: Used for structural support where drainage or bolt-through access is needed.
- Punched aluminum flat bar: Ideal for mounting brackets and industrial framing.
Technical Specifications: Alloy and Temper
Choosing the right alloy is critical for the success of your project. Here is a breakdown of the materials our factory uses for punched aluminum sheets.
| Alloy Series | Common Grade | Characteristics | Typical Applications |
|---|---|---|---|
| 1000 Series | 1050/1060 | 99% Pure Aluminum, Soft | Chemical equipment, reflectors |
| 3000 Series | 3003 | Added Manganese, Good strength | Kitchenware, general sheet metal |
| 5000 Series | 5052 | Magnesium alloy, High corrosion resistance | Marine use, fuel tanks, outdoor signs |
| 6000 Series | 6061 | Silicon/Magnesium, Structural strength | Truck frames, bridges, heavy hardware |
Temper (Hardness) Options
| Temper Designation | Meaning | Best For |
|---|---|---|
| O | Annealed (Soft) | Complex bending and deep drawing |
| H14 | Half Hard | Standard perforated sheet applications |
| H24 | Carbon Hardened | Excellent balance of strength and flexibility |
| T6 | Solution Heat Treated | Maximum strength for punched aluminum angle |
Digitzed Specifications for Hole Patterns
The “Open Area” percentage determines how much air or light passes through the punched aluminum sheet.
| Hole Shape | Hole Diameter (D) | Pitch (P) | Open Area % |
|---|---|---|---|
| Round | 2.0 mm | 4.0 mm | 22.6% |
| Round | 5.0 mm | 8.0 mm | 35.4% |
| Square | 10.0 mm | 12.5 mm | 64.0% |
| Slotted | 3.0×20 mm | 6.0×25 mm | 40.0% |
| Hexagonal | 6.0 mm | 7.0 mm | 67.0% |
How to Press and Cut Aluminum Sheet
As a professional factory, we use advanced methods to ensure precision in every punched aluminum sheet.
How to press aluminium sheet?
We use high-tonnage CNC presses. The process involves:
- Feeding: The aluminum coil or sheet is fed into the machine.
- Punching: A hardened steel die strikes the metal, removing the “slug” and creating the hole.
- Leveling: The punching process can slightly warp the metal. We run the sheets through a roller leveler to make them perfectly flat again.
How to cut sheet aluminum?
If you order a custom size from us, we use several cutting methods:
- Guillotine Shearing: Best for straight lines on a perforated aluminum sheet 4×8.
- Laser Cutting: Best for complex outer shapes or very thick aluminum.
- Waterjet Cutting: Used for very thick punched aluminum flat bars to avoid heat damage.
Perforated Aluminum Sheet Price Factors
When searching for the best perforated aluminum sheet price, you must consider several factors that influence the final cost:
- Material Weight: Aluminum is sold by the kilogram or ton. Thicker sheets cost more.
- Hole Complexity: Small, dense holes take more time and wear down tools faster than large holes.
- Quantity: Ordering in bulk (e.g., 100+ sheets) significantly lowers the price per sheet.
- Surface Treatment: Options like anodizing or powder coating add to the cost but increase durability.
Application Areas for Punched Aluminum

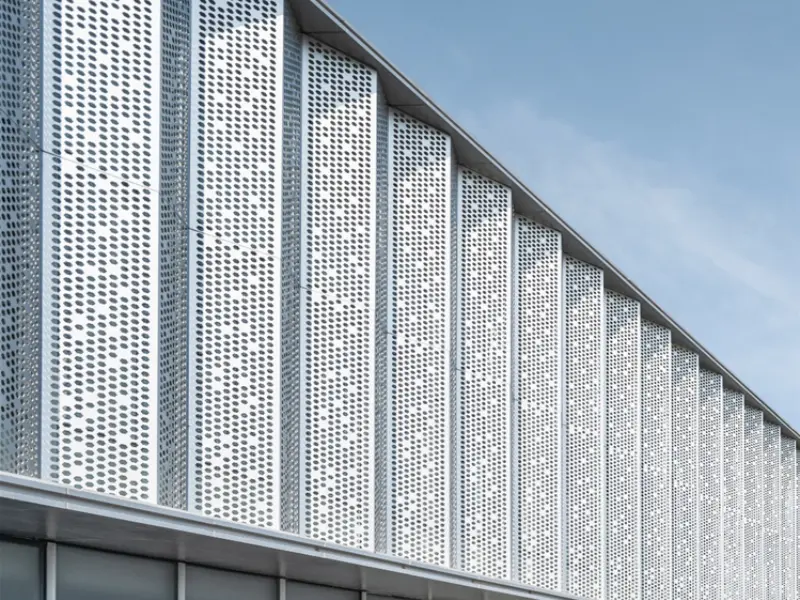

- Architectural Facades: Modern buildings use large perforated sheets for decorative “skins.”
- Interior Design: Ceiling panels, room dividers, and furniture.
- Industrial Filtration: Used in machines to strain liquids or separate materials.
- Acoustics: Perforated panels help absorb sound in theaters and recording studios.
- HVAC Systems: Air vents and protective covers for heating and cooling units.
- Automotive: Grilles for trucks and heat shields for engines.
Where to Find Perforated Aluminum Sheet Near Me?
Many customers search for “perforated aluminum sheet near me” or “sheet metal punching near me.” While local hardware stores carry small pieces, they often lack the variety and professional quality needed for large projects.
Our factory offers global shipping. Even if we are not in your city, our high-speed logistics ensure that your perforated aluminum strips or punched aluminum angles arrive quickly and at a lower price than local retailers.
Summary of Product Shapes
| Product Type | Form Factor | Primary Use |
|---|---|---|
| Sheets | 4×8 ft or custom | Large wall panels, floors, ceilings |
| Strips / Coils | Long and narrow | Vents, cable trays, edge trim |
| Angles | L-shaped | Corner supports, structural framing |
| Flat Bars | Rectangular bars | Brackets, hardware mounting |
| Foil | Ultra-thin rolls | Heat shields, specialized filters |
Frequently Asked Questions (FAQ)
1. Can I get a custom hole pattern?
Yes. Our factory can create custom dies for logos, unique geometric shapes, or specific air-flow requirements.
2. Is punched aluminum better than expanded metal?
Punched aluminum sheets have cleaner edges and more precise hole placements. Expanded metal is cheaper but has a rougher texture.
3. Does punching make the aluminum weaker?
Removing material does reduce the overall weight and some structural strength. However, the remaining “bridges” between the holes still provide significant rigidity, especially in 6061 alloy.
4. What is the thinnest aluminum you can punch?
We can punch perforated aluminum foil as thin as 0.1 mm and heavy plates up to 10 mm thick.
What is a Punched Aluminum Sheet?
A punched aluminum sheet is a piece of aluminum that has been mechanically stamped or “pressed” to create a pattern of holes, slots, or decorative shapes. This process is known as sheet metal punching.
Unlike drilling, punching is a fast, cost-effective way to create many holes at once using a CNC turret press or a high-speed die.
Key Benefits of Aluminum Punching:
- Lightweight: Aluminum is much lighter than steel.
- Corrosion Resistant: It does not rust, making it perfect for outdoor use.
- Aesthetic Appeal: Different hole patterns create beautiful visual effects.
- Ventilation: It allows air, light, and sound to pass through easily.
punched aluminum VS perforated aluminum
From the structural reliability of a punched aluminum flat bar to the decorative beauty of a perforated aluminum sheet 4×8, our factory provides the highest quality aluminum solutions. We focus on precision, variety, and competitive pricing.
Whether you are a contractor looking for “sheet metal punching near me” or a manufacturer needing millions of perforated aluminum strips, we have the capacity to deliver.
Contact our sales team today for a detailed quote on your punched aluminum sheet requirements. Let us help you find the right alloy, thickness, and pattern for your next project!
