The perforated aluminum plate stands out as one such versatile material. Created by punching a series of holes into a solid aluminum sheet, these plates offer unique properties like lightweight strength, airflow, light diffusion, and sound absorption. From architectural facades to industrial filtration, a perforated aluminum plate provides solutions where traditional solid sheets cannot.
Why Choose Perforated Aluminum Plate?
Choosing perforated aluminum plate for your project offers a multitude of benefits that make it a superior choice in many applications.
- Lightweight: Aluminum is naturally light, making perforated sheets even lighter, which eases installation and reduces structural load.
- Corrosion Resistance: Aluminum’s natural oxide layer provides excellent resistance to rust and corrosion, ideal for both indoor and outdoor use.
- Versatile Aesthetics: Available in a wide range of hole patterns, sizes, and finishes, offering extensive design flexibility.
- Ventilation and Airflow: The perforations allow for excellent air circulation, heat dissipation, and ventilation.
- Sound Absorption: Can effectively diffuse sound waves, making it useful in acoustic applications.
- Light Diffusion: Filters and diffuses light, reducing glare while allowing natural light to enter.
- Durability: Despite being lightweight, perforated aluminum plate is robust and long-lasting.
- Recyclability: Aluminum is 100% recyclable, making it an environmentally friendly choice.
Classification & Types of Perforated Aluminum Plate
Perforated aluminum plate can be classified based on its hole pattern, hole size, and arrangement. Understanding these options is key to selecting the ideal perforated metal aluminum wall panels & flat sheet for your specific needs.
1. Hole Patterns
The shape of the holes is a primary characteristic that defines the aesthetic and functional properties of the perforated aluminum plate.
| Hole Pattern | Description | Common Applications |
|---|---|---|

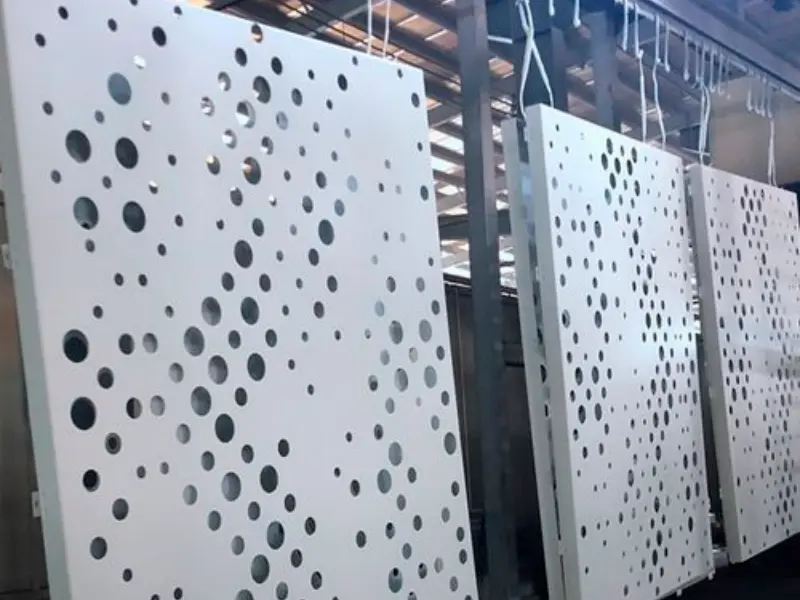

| Round | Most common and versatile. Offers good strength and open area. | Filtration, screens, architectural facades, enclosures |
| Square | Provides a more industrial, geometric look. | Grilles, guards, architectural features, ceiling panels |
| Slotted | Rectangular holes, often with round or square ends. Allows directional flow. | Sieving, sorting, ventilation, decorative screens |
| Hexagonal | High open area, often chosen for aesthetic appeal. | Decorative panels, light fixtures, architectural elements |

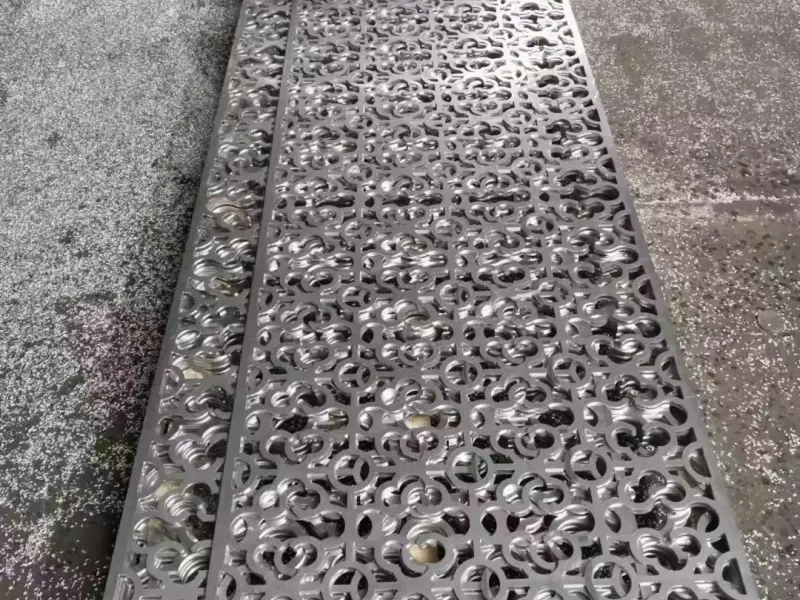

| Decorative | Custom or unique patterns for specific design requirements. | Artistic installations, custom facades, interior design |
2. Hole Arrangement
The way the holes are spaced on the sheet also impacts its strength, open area, and visual effect.
| Arrangement Type | Description | Open Area Potential |
|---|---|---|
| Staggered | Holes are offset from each other, creating a diagonal pattern (e.g., 60-degree stagger). | High |
| Straight | Holes are aligned in straight rows and columns (e.g., 90-degree). | Moderate |
Thickness & Standard Sizes
The thickness of a perforated aluminum plate is crucial for its strength and rigidity, while standard sizes like Perforated Aluminum Sheet 4×8 ensure compatibility with common construction practices.
Common Thicknesses
| Thickness (mm) | Gauge Equivalent | Typical Applications |
|---|---|---|
| 0.5 – 1.0 | 26 – 18 Gauge | Decorative screens, light diffusers, smaller panels |
| 1.0 – 2.0 | 18 – 14 Gauge | Ceiling panels, acoustic panels, general ventilation |
| 2.0 – 3.0 | 14 – 11 Gauge | Perforated metal aluminum wall panels, sunshades |
| 3.0 – 6.0+ | 11 Gauge and thicker | Heavy-duty architectural facades, industrial flooring |
Note: Thicker plates offer greater rigidity and resistance to bending.
Standard Sheet Sizes
While custom sizes are available through Aluminium Sheet Cut To Size – Perforated Metal services, a very common standard size is the Perforated Aluminum Sheet 4×8.
- Perforated Aluminum Sheet 4×8: This refers to a sheet measuring 4 feet by 8 feet (approximately 1219mm x 2438mm). This size is popular for its manageability and efficiency in many projects.
Alloy: The Foundation of Your Perforated Aluminum Plate
The specific alloy used for a perforated aluminum plate influences its mechanical properties, including strength, formability, and corrosion resistance.
- 1100 Series (e.g., 1100):
- Properties: Excellent corrosion resistance, high ductility, good thermal and electrical conductivity. Lower strength.
- Use: General purpose, decorative, applications where strength is not a primary concern.
- 3000 Series (e.g., 3003, 3004):
- Properties: Good workability, moderate strength, very good corrosion resistance.
- Use: Most common for architectural and general industrial applications, including perforated metal aluminum wall panels.
- 5000 Series (e.g., 5052):
- Properties: High strength, excellent corrosion resistance (especially in marine environments), good weldability.
- Use: More demanding applications, high-strength screens, marine environments.
Applications: Where Perforated Aluminum Excels
The versatility of perforated aluminum plate means it’s used across a vast array of industries and applications, often as perforated metal aluminum wall panels & flat sheet.
- Architectural:
- Building facades and cladding
- Sunshades and brise-soleil
- Balcony railings and infill panels
- Decorative partitions and screens
- Ceiling panels and lighting fixtures
- Industrial:
- Filters and screens (e.g., grain processing, industrial machinery)
- Grilles and vents for machinery protection
- Speaker grilles
- Heat dissipation panels
- Walkways and safety barriers
- Acoustic:
- Soundproofing panels in studios, concert halls, and offices
- HVAC systems for noise reduction
- Automotive:
- Grilles, air intakes, and exhaust guards
- Retail & Display:
- Shelving, display stands, and store fixtures
Perforated Aluminum Sheet Price: What to Expect
The perforated aluminum sheet price varies based on several factors. Understanding these can help you budget effectively.
- Alloy and Thickness: Higher-grade alloys (e.g., 5000 series) and thicker sheets typically cost more.
- Hole Pattern and Size: Complex or very small hole patterns might require more specialized tooling, affecting cost.
- Open Area Percentage: Sheets with a very high open area (more material removed) can sometimes be more expensive due to complex processing.
- Sheet Size: Standard sizes like Perforated Aluminum Sheet 4×8 are often more cost-effective than custom Aluminium Sheet Cut To Size – Perforated Metal orders due to production efficiency.
- Quantity: Larger bulk orders from a factory usually benefit from volume discounts.
- Finish: Additional finishes like powder coating or anodizing will add to the base price.
Our Factory: Your Source for Perforated Metal Sheets & Panels In-Stock
As a dedicated factory specializing in perforated aluminum plate manufacturing, we pride ourselves on delivering high-quality products to meet diverse customer needs. We offer a wide range of perforated metal sheets & panels in-stock, ready for immediate dispatch, as well as custom fabrication services.
Our factory advantages include:
- Advanced Equipment: State-of-the-art punching and fabricating machinery ensures precision and efficiency.
- Quality Materials: We source premium aluminum alloys to guarantee durability and performance.
- Extensive Inventory: A large selection of perforated metal sheets & panels in-stock in various patterns, thicknesses, and alloys.
- Customization: Full capabilities for Aluminium Sheet Cut To Size – Perforated Metal, custom hole patterns, and finishing options.
- Expertise: Our experienced team can guide you in selecting the best perforated aluminum plate for your project.
- Competitive Pricing: Direct factory supply ensures you get the best value for your perforated aluminum sheet price.
Packaging for Safe Delivery
Proper packaging is essential to ensure your perforated aluminum plate arrives in pristine condition, ready for installation. We employ robust packaging methods tailored to the size and quantity of your order.
- Protective Film: Each sheet is often covered with a removable protective film to prevent scratches during handling and transport.
- Wooden Pallets/Crates: Sheets are securely stacked on sturdy wooden pallets or enclosed in crates for larger or fragile shipments.
- Steel Banding: Bundles are tightly secured with steel or plastic banding to prevent movement.
- Waterproof Wrapping: For international or long-distance shipments, bundles are typically wrapped in waterproof material to protect against moisture.
FAQ: Your Questions About Perforated Aluminum Plate Answered
Q1: What are the main benefits of using a perforated aluminum plate?
A1: The main benefits include being lightweight, excellent corrosion resistance, versatile aesthetic options, superior airflow and ventilation capabilities, and effective sound absorption. It’s a durable and sustainable material.
Q2: What standard sizes are available for perforated aluminum sheet?
A2: A very common standard size is the Perforated Aluminum Sheet 4×8 (4 feet by 8 feet or 1219mm x 2438mm). However, many suppliers and our factory also offer custom Aluminium Sheet Cut To Size – Perforated Metal to meet specific project dimensions.
Q3: How is the perforated aluminum sheet price determined?
A3: The price is influenced by several factors, including the chosen aluminum alloy, sheet thickness, hole pattern complexity, open area percentage, sheet dimensions, order quantity, and any additional finishing (e.g., powder coating).
Q4: Can I get custom hole patterns or shapes for my perforated aluminum plate?
A4: Yes, as a specialized factory, we offer customization for hole patterns, sizes, and arrangements beyond standard options. This allows for unique design applications for perforated metal aluminum wall panels & flat sheet and other uses.
Q5: Is perforated aluminum plate suitable for outdoor use?
A5: Absolutely. Aluminum’s natural resistance to corrosion makes it highly suitable for outdoor applications, including building facades, sunscreens, and decorative elements, without rusting.
